STITCHEDSEWN BELLOWS
Fabric bellows constructed using industrial stitching techniques, suitable for general protection applications with controlled flexibility and cost efficiency.
PRECISION STITCHED
35+ Years ExperienceOEM Focused ManufacturingCustom EngineeringMade in India
Machine Protection Systems
BELLOWS COVERS
At Signage Products, we manufacture custom-engineered bellows covers designed to meet specific machine geometry, movement, and environmental requirements. Each bellows cover is produced to precise dimensions, ensuring consistent folding, smooth operation, and long service life.
We work with a wide range of coated and technical fabrics, including PVC-coated polyester, PU-coated materials, and specialized technical fabrics, selected based on application conditions such as abrasion, temperature, and exposure to dust, oil, or moisture.
From single prototypes to series production, we focus on precision fabrication, material consistency, and application-specific performance.
35+ Years Experience
OEM Focused Manufacturing
Custom Engineering
Made in India
Product Range
CONSTRUCTION VARIANTS
STITCHEDHEAT-SEALEDTHERMO-WELDED
Manufactured from thermoplastic-coated fabrics, precision-pleated and heat-welded to integrated PVC stiffeners at each fold, resulting in a sealed construction without stitched seams or needle holes.
LIQUID & DUST PROOF
ARMOREDLAMELLA BELLOWS
Heavy-duty bellows incorporating stainless steel lamella plates mounted over each convolution, designed for applications involving hot chips, sparks, and high mechanical abrasion.
EXTREME PROTECTION
Technical Details
Profile Families

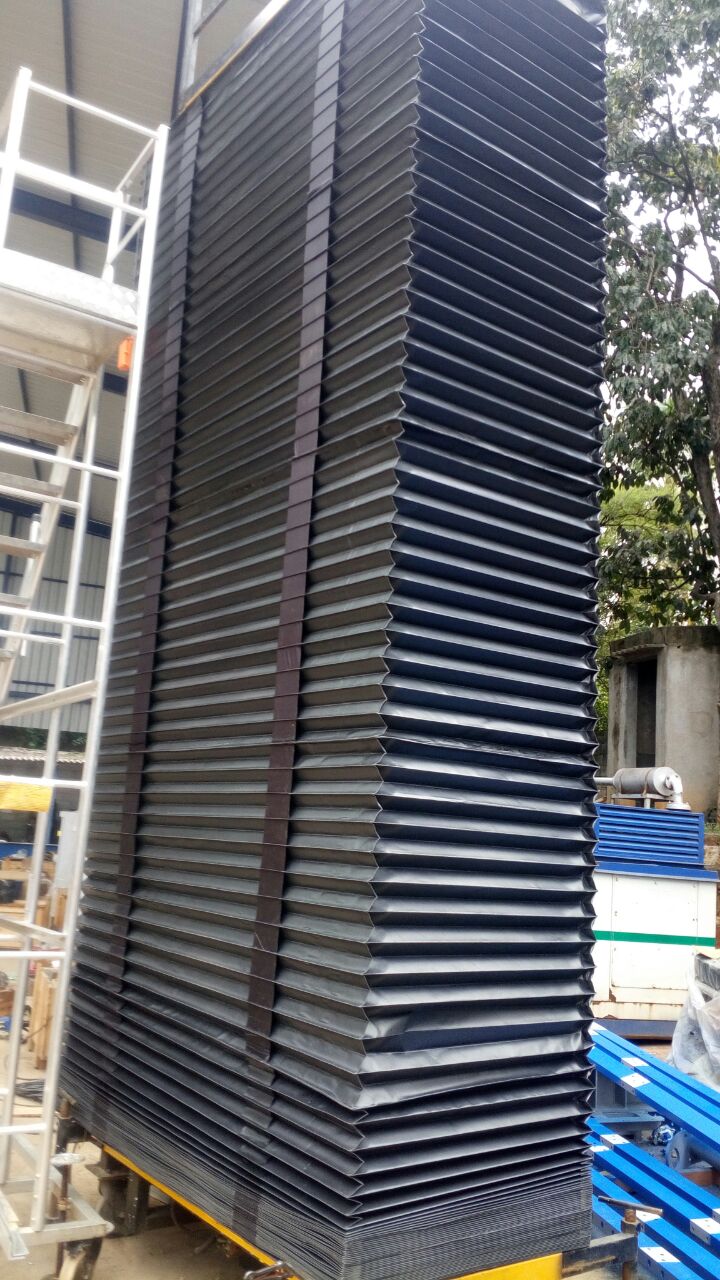

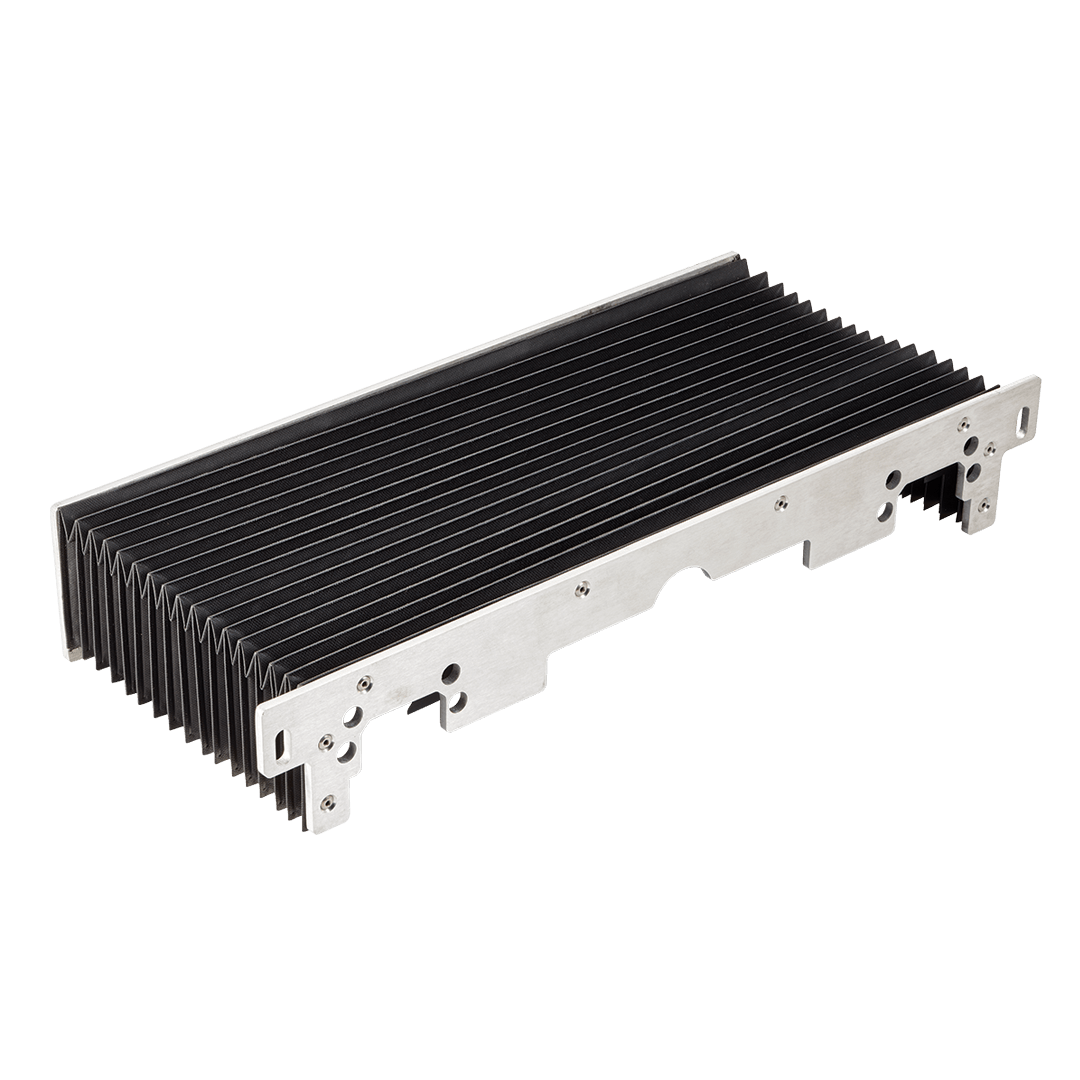

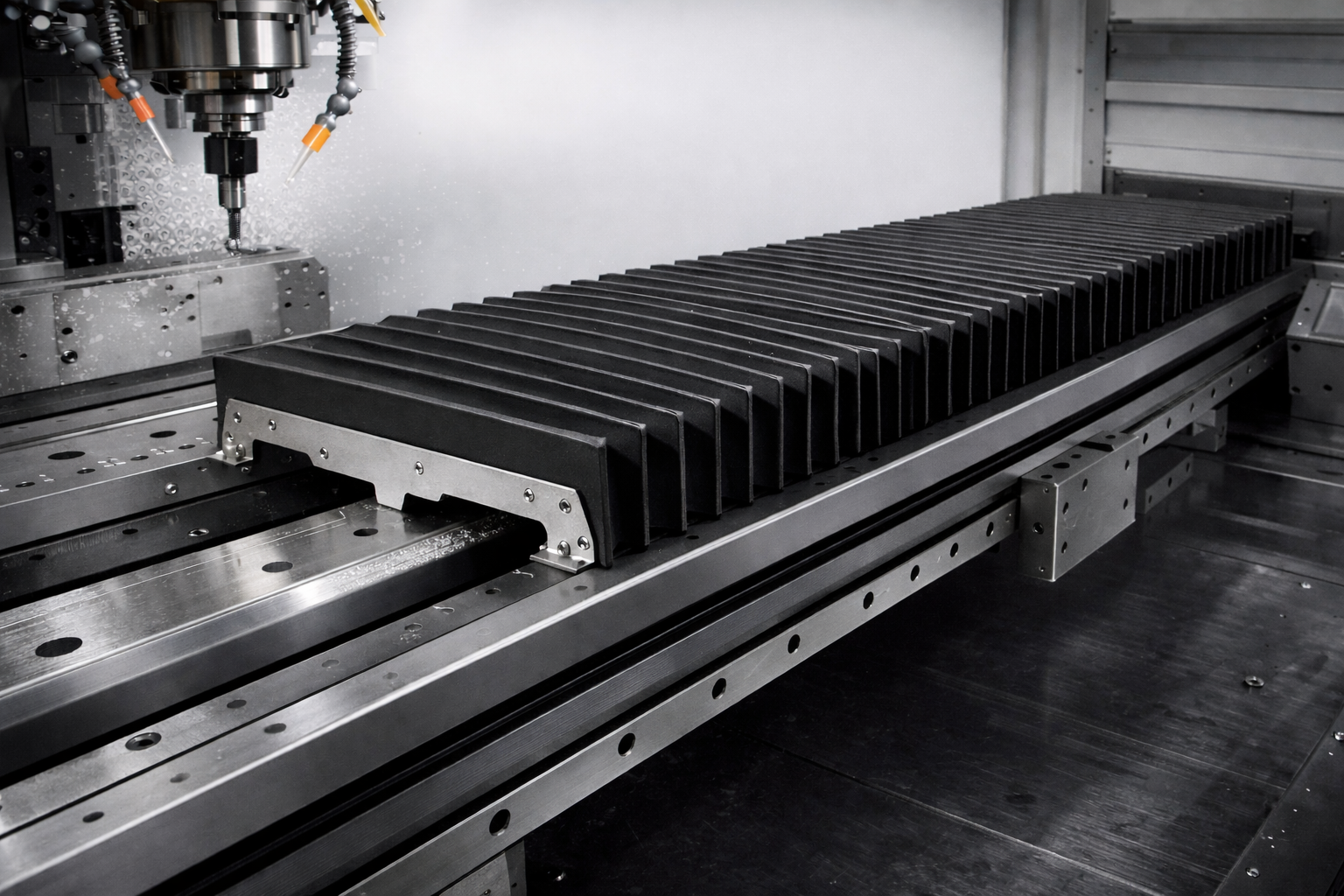

Thermo Weld or Heat Sealed Bellows
- Heat-Sealed Bellows Covers are manufactured from a single sheet of thermoplastic-coated technical fabric that is precision-pleated and heat-welded to PVC stiffeners at each fold. This process creates a uniform, sealed construction without stitched seams or needle holes, improving resistance to fine particles, light abrasives, oil, chips, and liquid exposure. The design can be produced in various shapes and sizes, with optional stainless-steel reinforcements for applications requiring enhanced protection against sparks or hot chips.

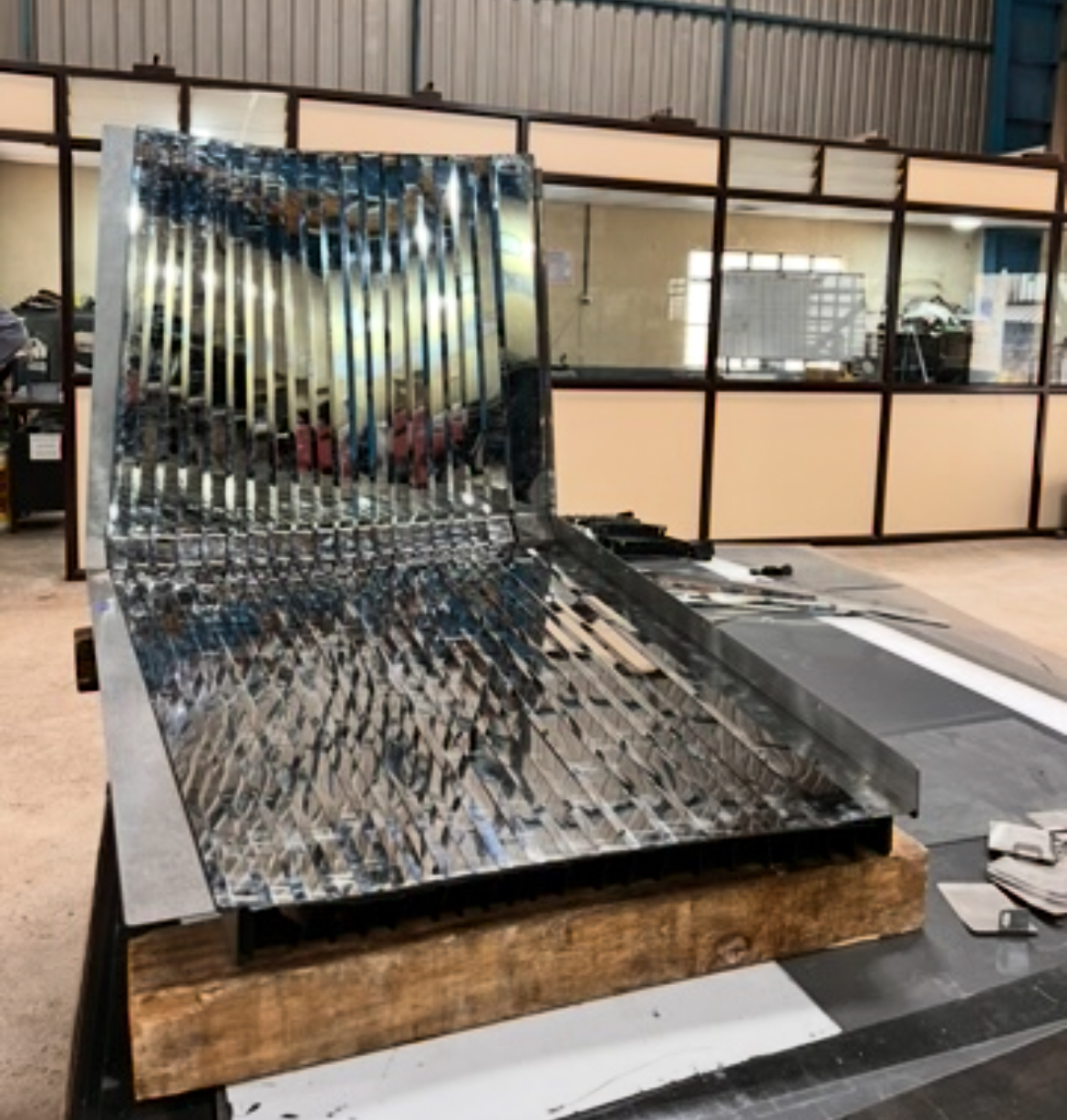

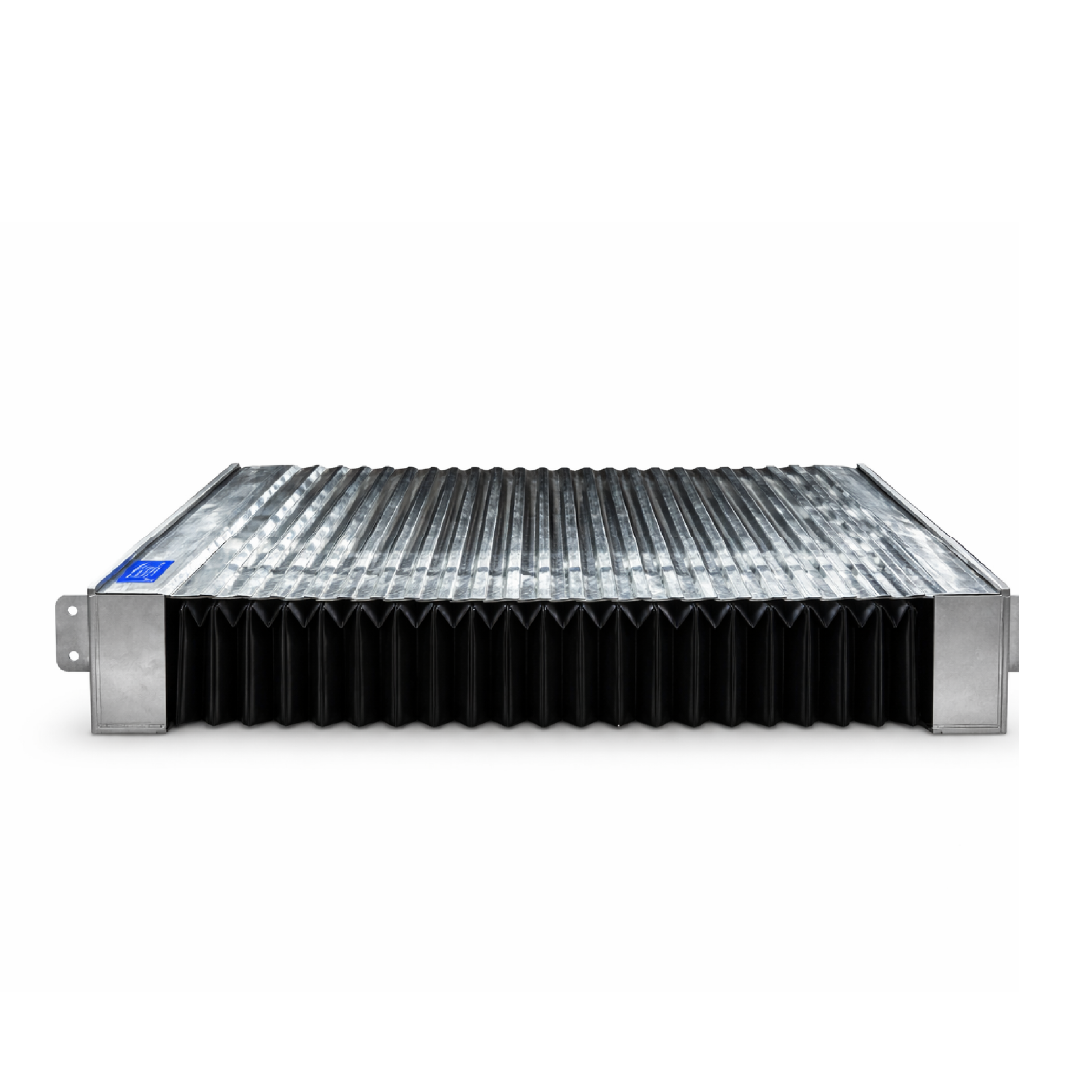

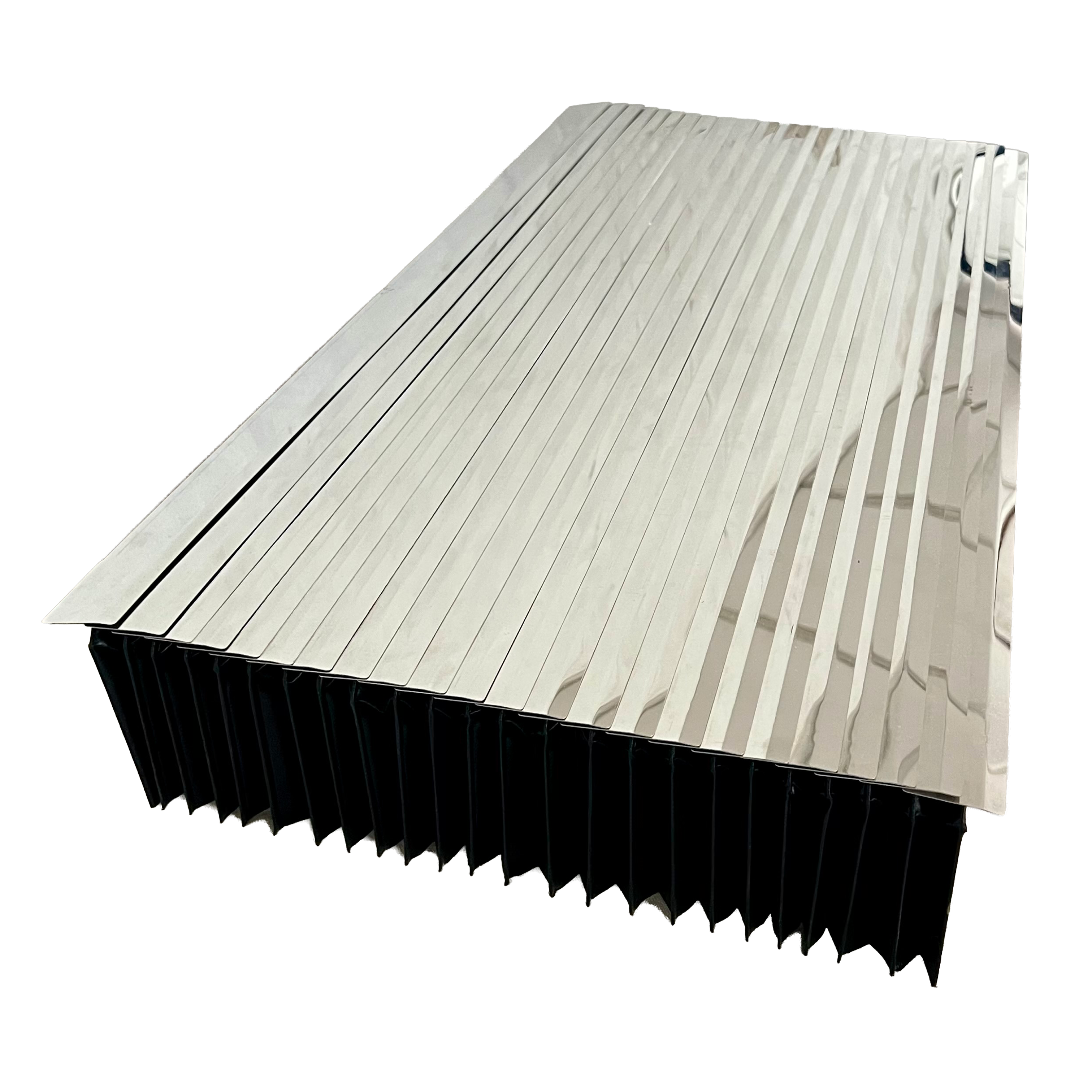

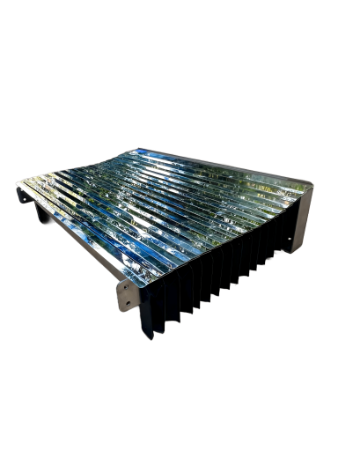

Lamella Bellows
- Our Lamella Bellows are manufactured using a precision-folded base bellows combined with integrated stainless steel lamella plates at each convolution. The lamella elements are mechanically attached to the bellows structure to provide enhanced resistance against hot chips, sparks, and abrasive debris, while maintaining controlled folding and smooth operation. Depending on application requirements, the base bellows can be produced using heat-sealed or sewn construction, with designs optimized for compact compression, repeatable movement, and long service life in demanding operating environments.

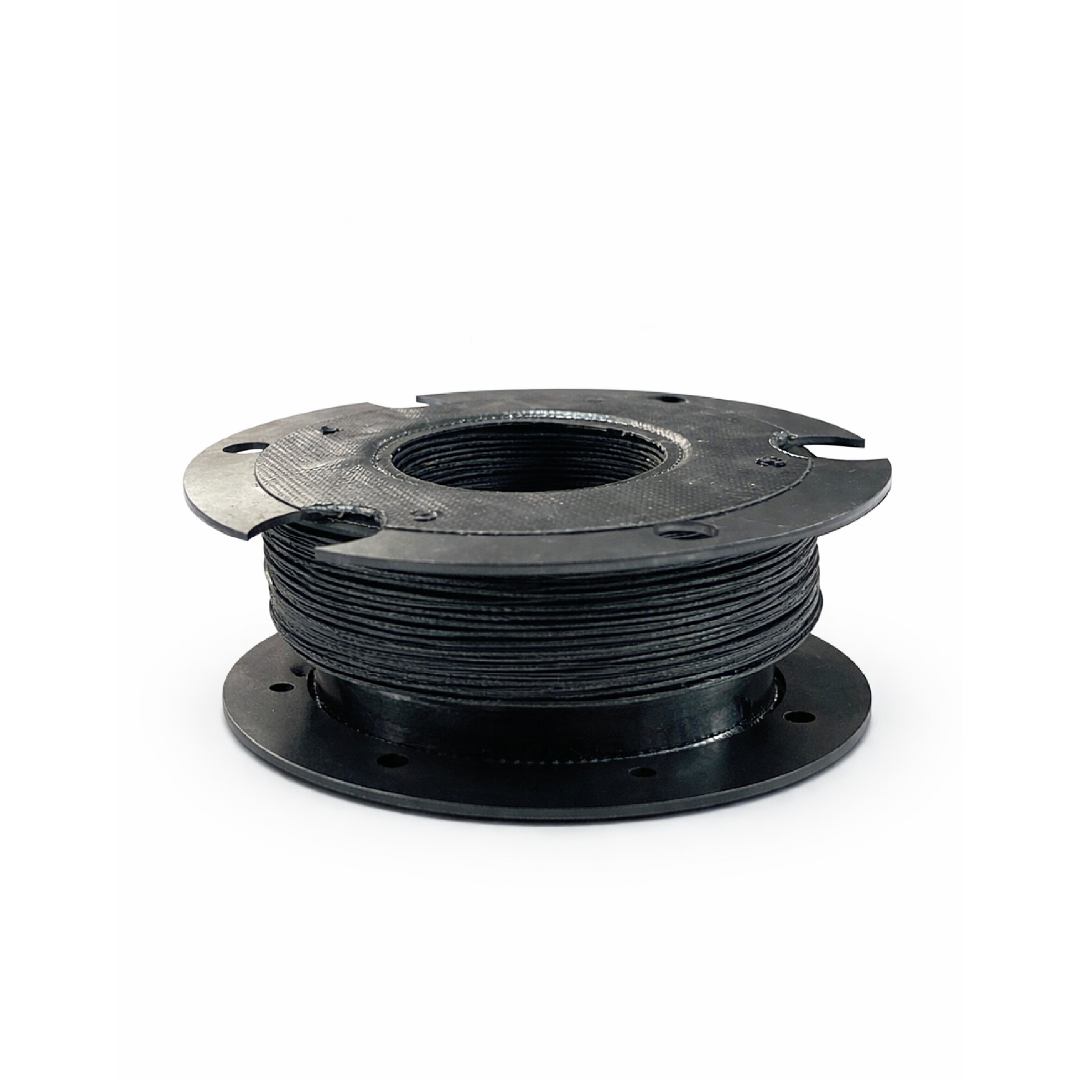

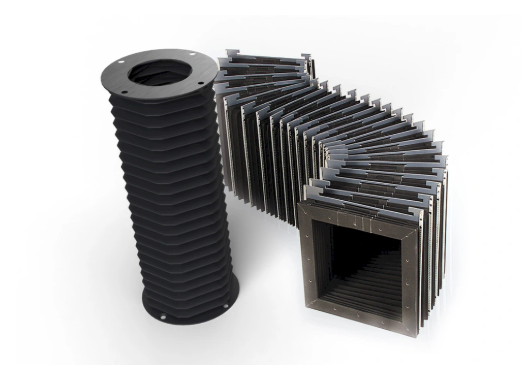

Conventional Sewn Bellows
- These are authentic general purpose bellows manufactured with internal PVC support glued with an extenal PVC coating, resistant to dust, coolants spray, temperatures ranging from 30C to 75C. It also comes with lamellas, scissor frames etc to meet the complicated requirements of the machines.
Materials
MATERIALS EXPERTISE
Material selection is based on application conditions such as abrasion, temperature, chemical exposure, and movement cycles.
- PVC-coated polyester (single and double-sided)
- PU-coated fabrics
- PTFE and specialty technical fabrics
- Multi-layer fabric constructions
Customisation
DESIGN & CUSTOMISATION
All bellows are custom-manufactured to match machine geometry and operating parameters:

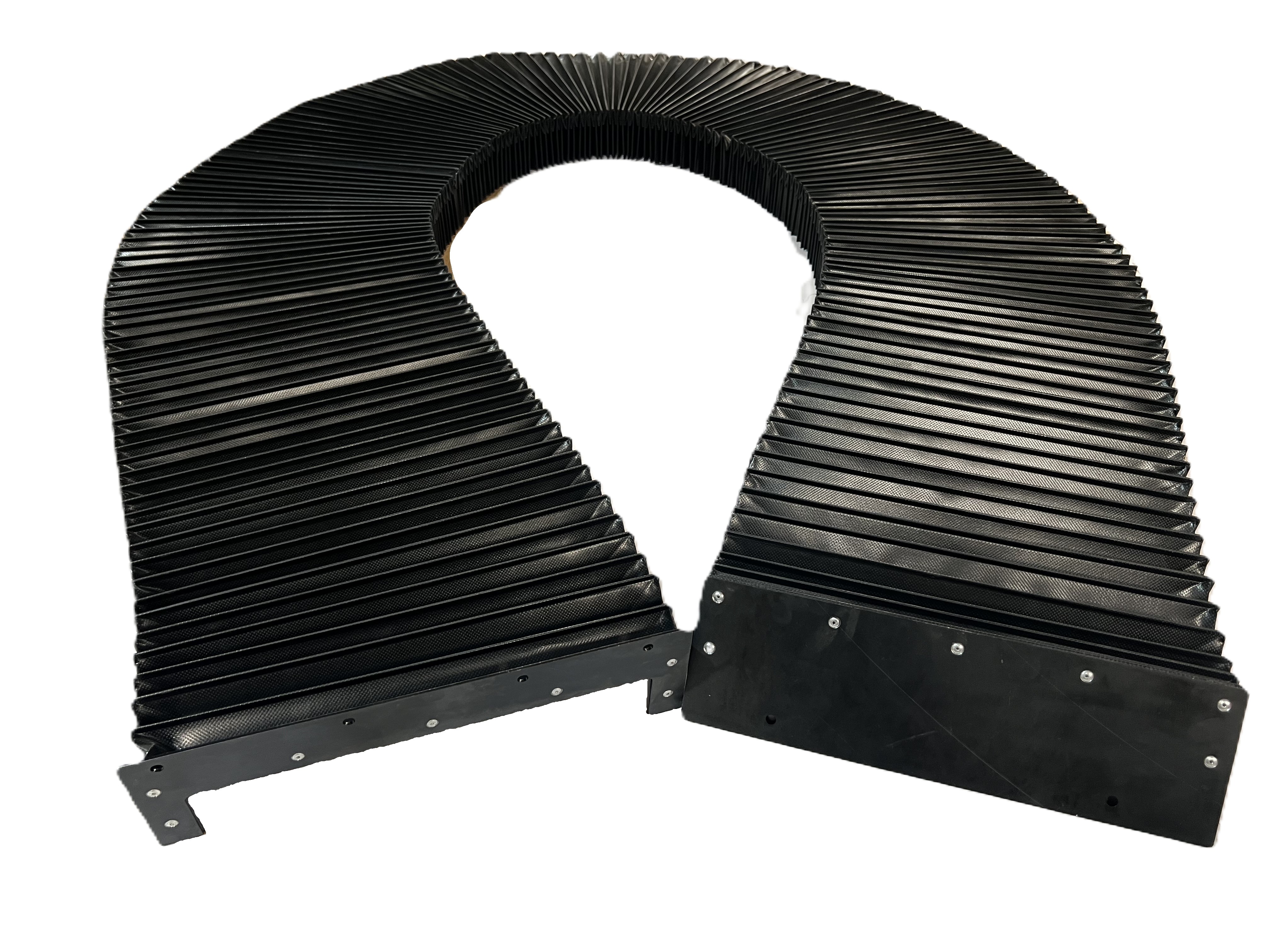

Rectangular, square, circular, tapered, and complex profiles
Customized fold pitch, stroke length, and compression ratio
Optional internal PVC stiffeners, frames, or guide elements
Multiple mounting solutions to suit customer interfaces
Designs are optimized for smooth movement, dimensional stability, and long service life.
How We Build It
MANUFACTURING CAPABILITIES
We support prototype development, small batches, and series production.
Precision pleating and folding
Sewing, thermo-welding, and hybrid constructions
Integration of PVC stiffeners and metal reinforcements
Consistent batch production with repeatable quality
Standards
QUALITY FOCUS
- Controlled fabrication processes
- Dimensional accuracy and consistency
- Visual and functional inspection at key stages
- Focus on durability under repetitive motion
Where It's Used
APPLICATIONS SERVED
Machine tools and CNC equipment
Linear motion systems and guideways
Automation and material handling machinery
Industrial and precision mechanical equipment
