Machine Protection Systems

ROLL-UP (ROLL WAY) COVERS

Roll-up way covers are compact protection solutions designed to safeguard guideways, linear rails, ball screws, and moving machine components from chips, coolant, oil, and debris. The cover material rolls and unrolls smoothly on a spring-loaded or motorized mechanism as the machine axis moves, providing continuous protection with minimal space requirement.

Ideal for high-speed and long-travel applications, roll-up covers are widely used on CNC machines and automation systems where conventional covers are not feasible. Their lightweight construction ensures smooth operation while improving machine reliability and reducing maintenance.

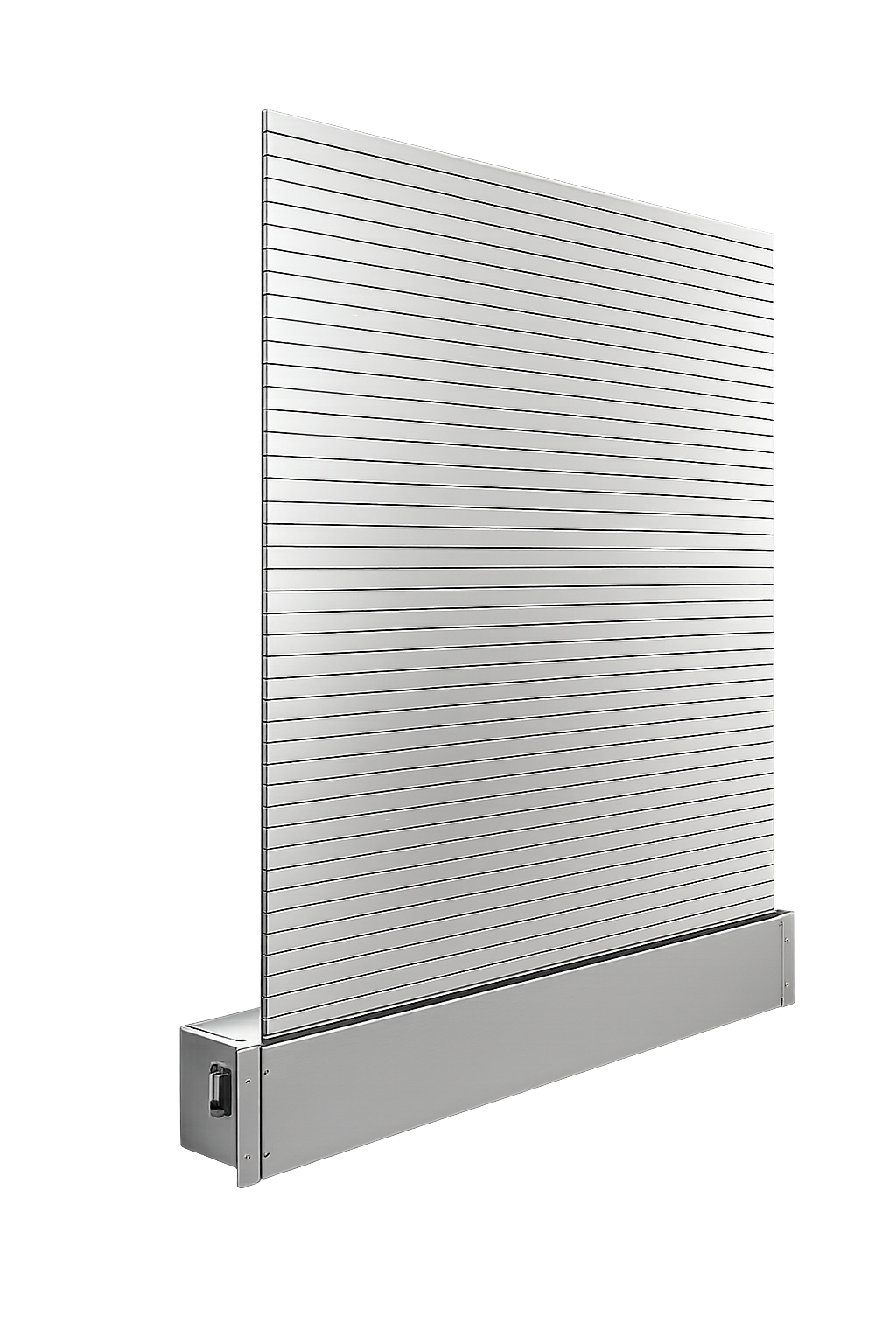

PHOTOGRAPH OF ROLL WAY COVER WITH HOUSING AND WITHOUT HOUSING.

35+ Years Experience
OEM Focused Manufacturing
Custom Engineering
Made in India

Product Range

CONSTRUCTION VARIANTS

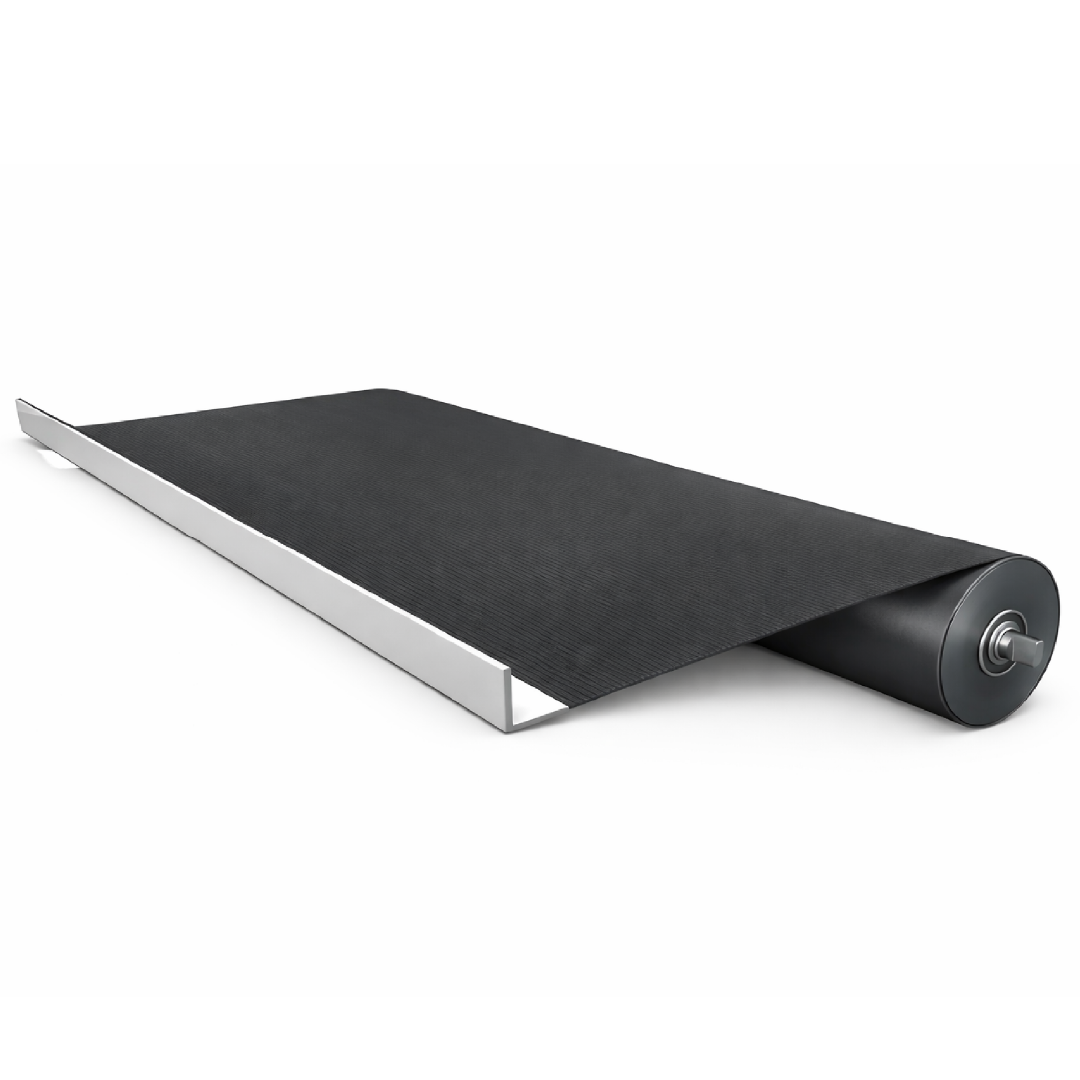

Roll-up cover without housingWITHOUT HOUSING

Roll-up cover without housing

Roll-up covers without a housing are suitable for areas with limited space, and facilitate optimal integration into the machine enclosure.

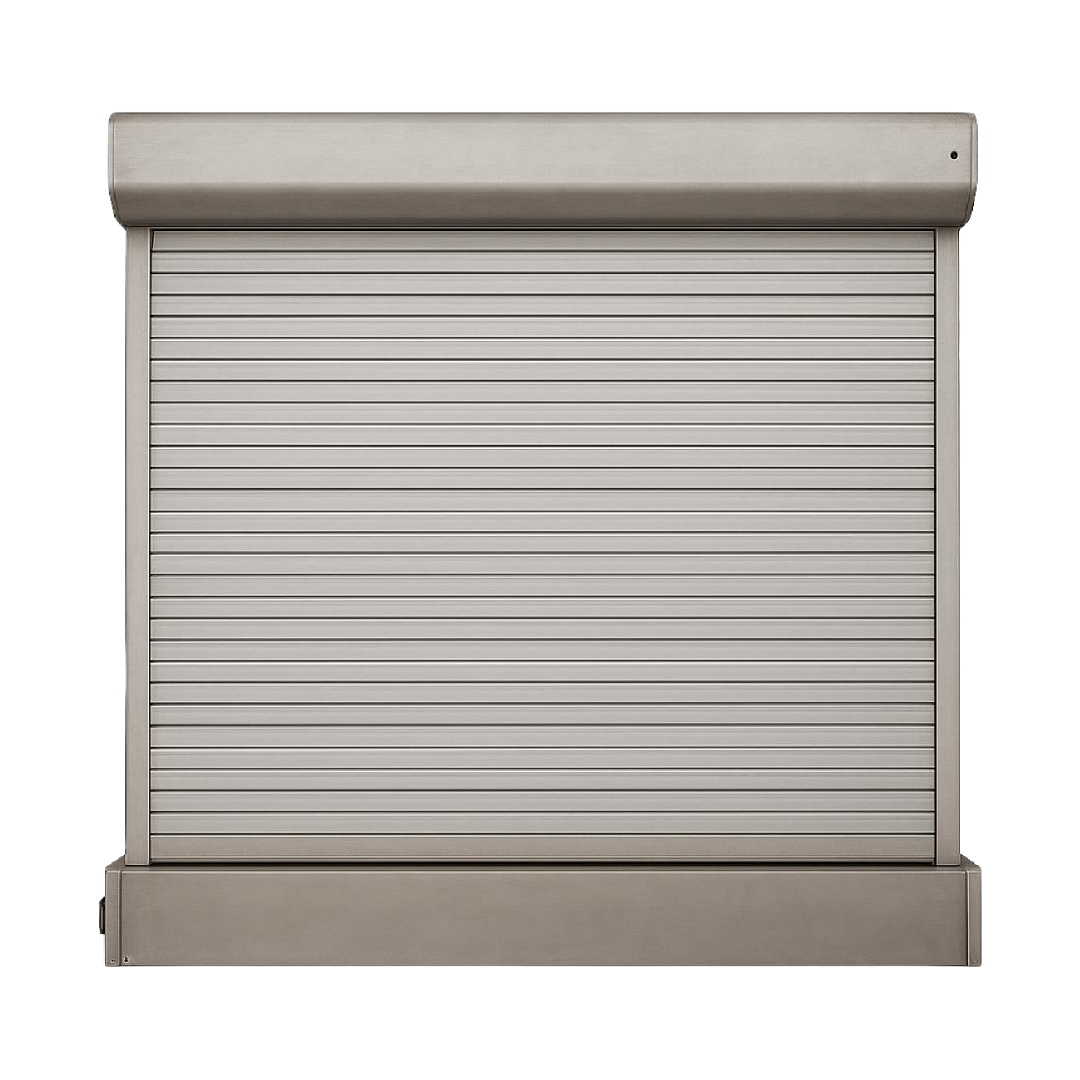

Roll-up cover with housingWITH HOUSING

Roll-up cover with housing

Roll-up covers with a housing protect the roll-up cover and enable simple assembly, also retrofitting. The complete system provides selectable fixing possibilities and a defined belt outlet position.

Alumaflex Type A RibTYPE A

Alumaflex Type A Rib

Interlocked profile with polyurethane hinge. Bending in both directions is possible, with flat-end or angled-end bar options.

URETHANE HINGE
Alumaflex Type B RibTYPE B

Alumaflex Type B Rib

Ball-and-socket interlock with plastic end caps and no polyurethane components. Custom ends are available.

BALL AND SOCKET
Alumaflex Type C RibTYPE C

Alumaflex Type C Rib

Interlocked profile with hidden polyurethane hinge, providing a smoother and flatter surface with flat-end or angled-end options.

HIDDEN HINGE

Technical Details

Profile Families

MOTORISED ROLL WAY COVERS (ON REQUEST)

  • Motorised roll way covers can be supplied on request for long travel, higher duty cycles, and synchronized movement requirements.
  • Fabric Used: A - Polyester coated with PVC; B - Polyester coated with Polyurethane; C - Stainless Steel; D - Polyester coated with Rubber; E - PVC Transparent; F - Aluminium cover carpet; G - Aluminium coated fabric.
  • Standard canister size range (A x A): 40x40, 50x50, 60x60, 70x70, 80x80, 90x90, 100x100, 110x110, 120x120, 130x130, 140x140, 150x150.
  • Band attachment positions supported: Horizontal, Frontal, and Vertical.
  • Fixing positions are available in multiple orientations to match machine space constraints.
  • Housing type options include visible-side mounting as shown in the reference layout.
MOTORISED ROLL WAY COVERS (ON REQUEST)

ALUMAFLEX RIB STYLES

  • Type A: Interlocked with polyurethane hinge, bending in both directions possible. Angled or flat bar at end of shade.
  • Type B: Ball-and-socket interlock with plastic end caps. No polyurethane components.
  • Type C: Interlocked with hidden polyurethane hinge, resulting in a smoother, flatter surface. Angled or flat bar at end of shade.
  • Reference: Dynatect Alumaflex rib style guidance for profile selection.
ALUMAFLEX RIB STYLES

ALUMAFLEX ROLL-UP COVERS: RIB PROFILE DIMENSIONS

  • Type A rib (urethane hinge): approx. 0.20 in [5.1 mm] profile height, ~0.80 in [20.4 mm] pitch region, and end-bar options with 0.78 in [19.9 mm] projection.
  • Type A end options: Flat End and Angled End; Angled End overall height shown as 0.95 in [24.1 mm].
  • Type B rib: approx. 0.24 in [6.0 mm] profile height and 0.75 in [19.1 mm] rib spacing; custom ends available.
  • Type C rib (urethane hinge): approx. 0.22 in [5.5 mm] profile height and ~0.81 in [20.5 mm] pitch region.
  • Type C end options: Flat End and Angled End with dimensions shown at 0.20 in [5.1 mm], 0.78 in [19.9 mm], and 0.95 in [24.1 mm].
  • Note: values above are transcribed from the provided reference drawings and should be finalized against production drawings before release.
ALUMAFLEX ROLL-UP COVERS: RIB PROFILE DIMENSIONS

Roll-up cover without housing

  • Highly tear-resistant due to plastic-coated special fabric in different material thicknesses and designs
  • Protection against chipping waste, oils and cooling emulsions
  • Little space required
  • Fixing via fixing angle bracket or integration within the machine
Roll-up cover without housing

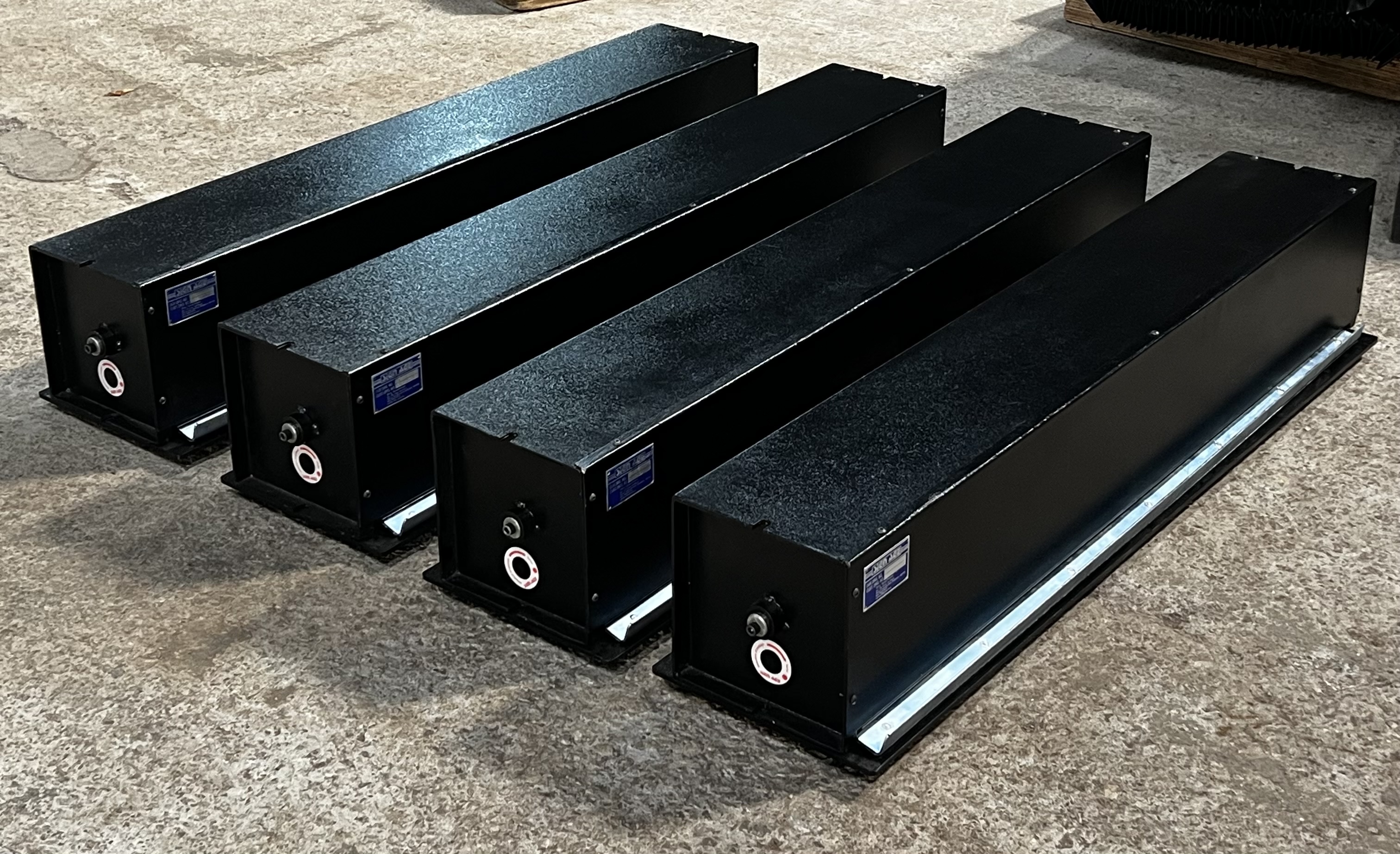

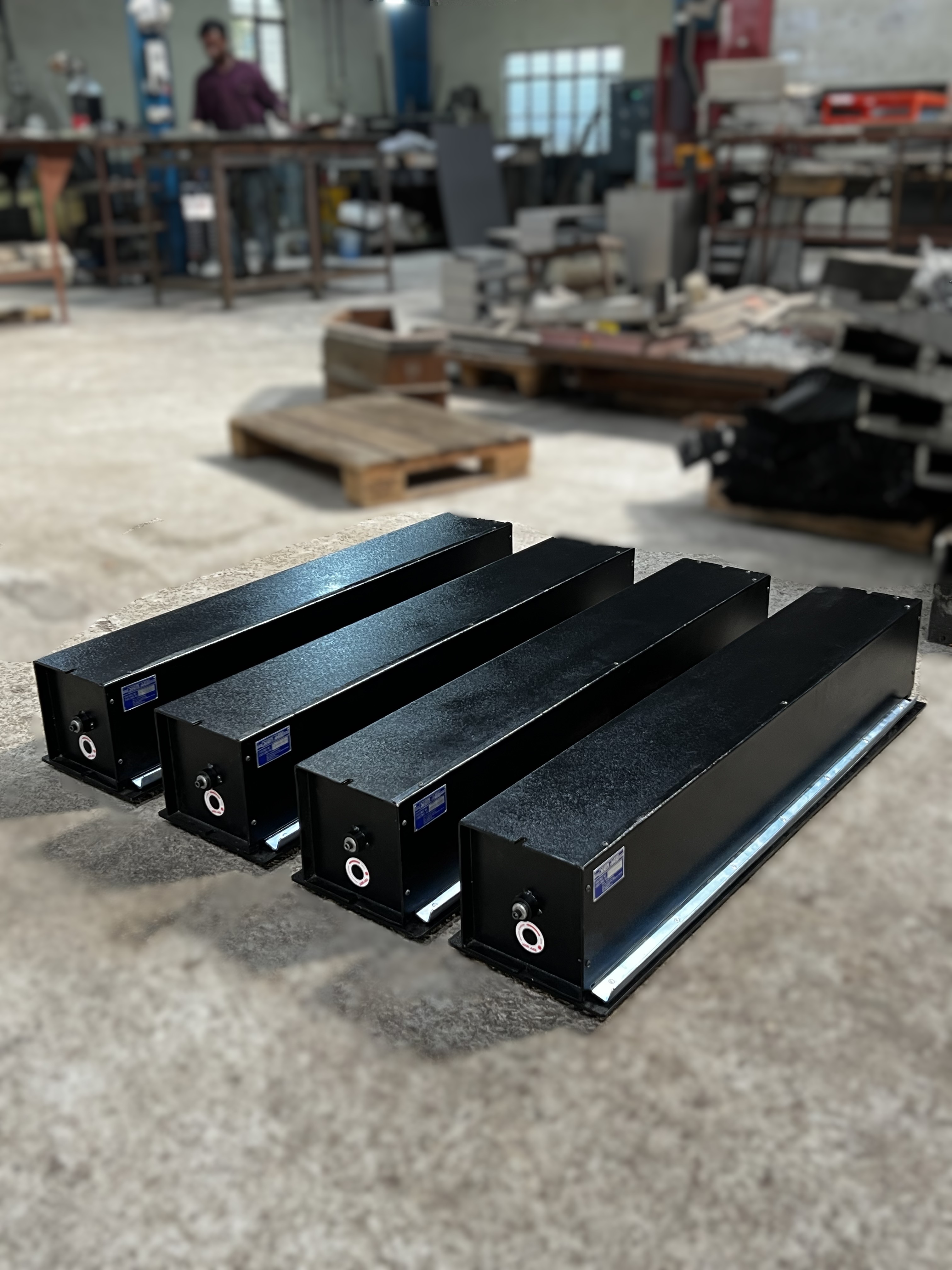

Roll-up cover with housing

  • Steel belt made of rust-resistant and acid-resistant spring steel strip in material thicknesses from 0.2 to 0.4 mm
  • Plastic belt made of special fabric in different material thicknesses and designs
  • Steel roller belts only available in combination with housing
  • Protection against chipping waste, oils and cooling emulsions
  • For high travel speeds and loads.
Roll-up cover with housing

Special Apron curtain Roller Cover

  • Special apron curtain roller covers are available for custom machine geometries where compact roll-up integration and extended travel are required.
Special Apron curtain Roller Cover

Materials

MATERIALS & CONSTRUCTION

  • High-performance technical fabrics (PVC, PU, PTFE-coated)
  • Stainless steel or composite cover materials (application-specific)
  • Corrosion-resistant rollers and components
  • Reinforced edges available for increased wear resistance

Customisation

CUSTOM & OPTIONAL CAPABILITIES

Custom widths, lengths, and travel configurations
Spring-loaded or motorized roller systems
Motorised roll way covers available on request
Material selection based on speed, temperature, and environment
Heavy-duty variants for high chip load applications
Customized mounting options for OEM and retrofit installations

How We Build It

QUALITY & EXPORT CAPABILITY

Manufactured under controlled processes for consistent quality

Dimensional accuracy maintained as per customer specifications

Final inspection prior to dispatch

Export-ready packaging for international shipment

Standards

STANDARD FEATURES

  • Protection for guideways, linear rails, and moving assemblies
  • Compact, space-saving design for restricted installations
  • Suitable for high-speed and long-travel applications
  • Smooth rolling operation with controlled tension
  • Lightweight construction with minimal impact on machine performance
  • Resistant to chips, coolant, oils, and shop-floor contaminants
  • Designed for continuous industrial operation
  • Low maintenance and easy installation

Where It's Used

APPLICATIONS

CNC machining centers and milling machines
CNC lathes and turning centers
Grinding machines
Automation and linear motion systems
Special-purpose and custom-built machines

Document Support

ROLL-UP WAY COVERS – CAPABILITY SHEET (EXPORT)

  • Product Overview
  • Applications
  • Standard Features
  • Materials & Construction
  • Custom & Optional Capabilities
  • Performance Benefits
  • Quality & Export Capability
  • Engineering Support

ENGINEERING SUPPORT

Technical support available for product selection, design optimization, and installation guidance.
