Machine Protection Systems

WAY WIPERS / WIPER SYSTEMS

Way wipers are critical protection components mounted on machine carriages to continuously clean and seal guideways during operation. They prevent chips, dust, coolant, and debris from entering sensitive sliding or rolling surfaces.

An effective wiper system directly improves machine accuracy, reduces maintenance, and prolongs guideway life.

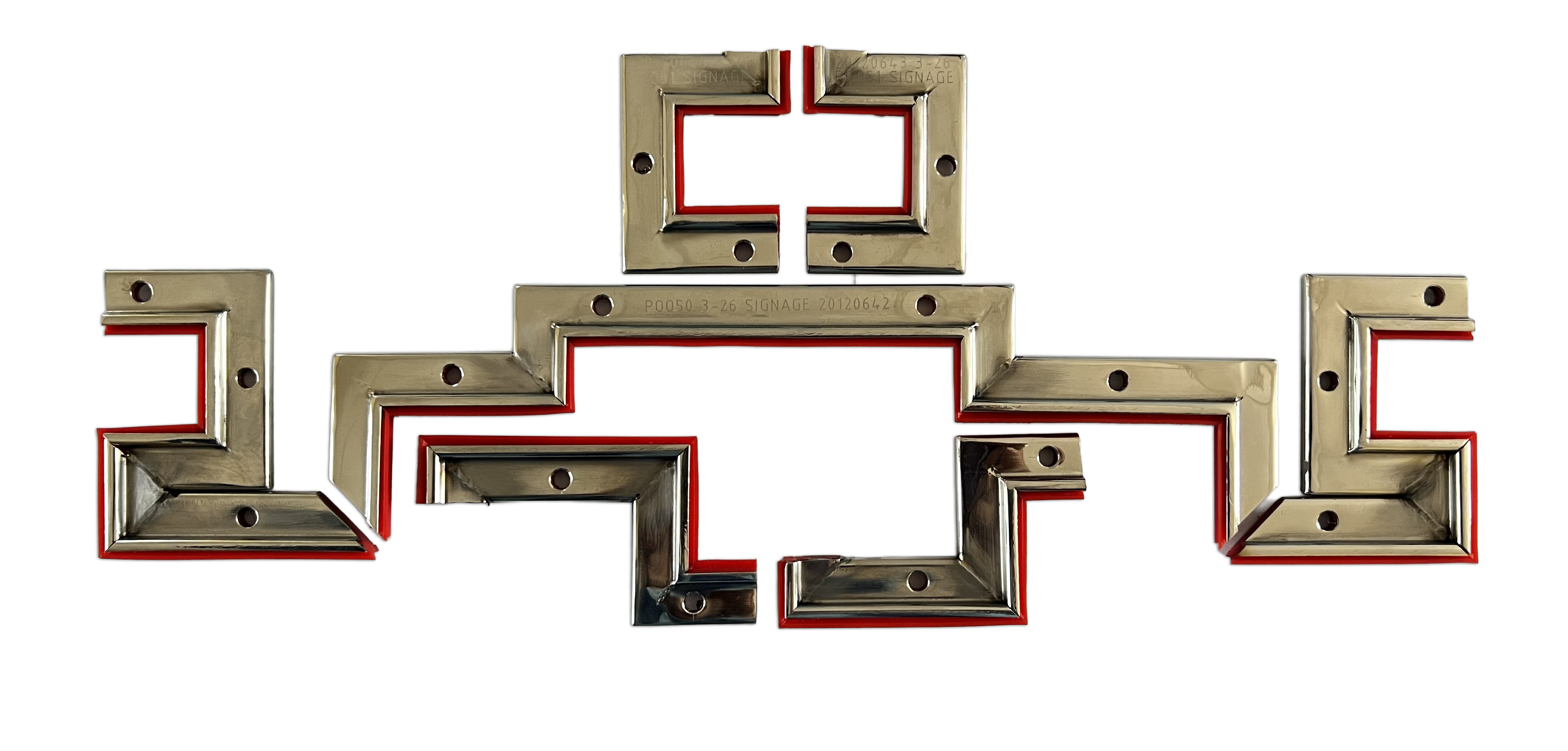

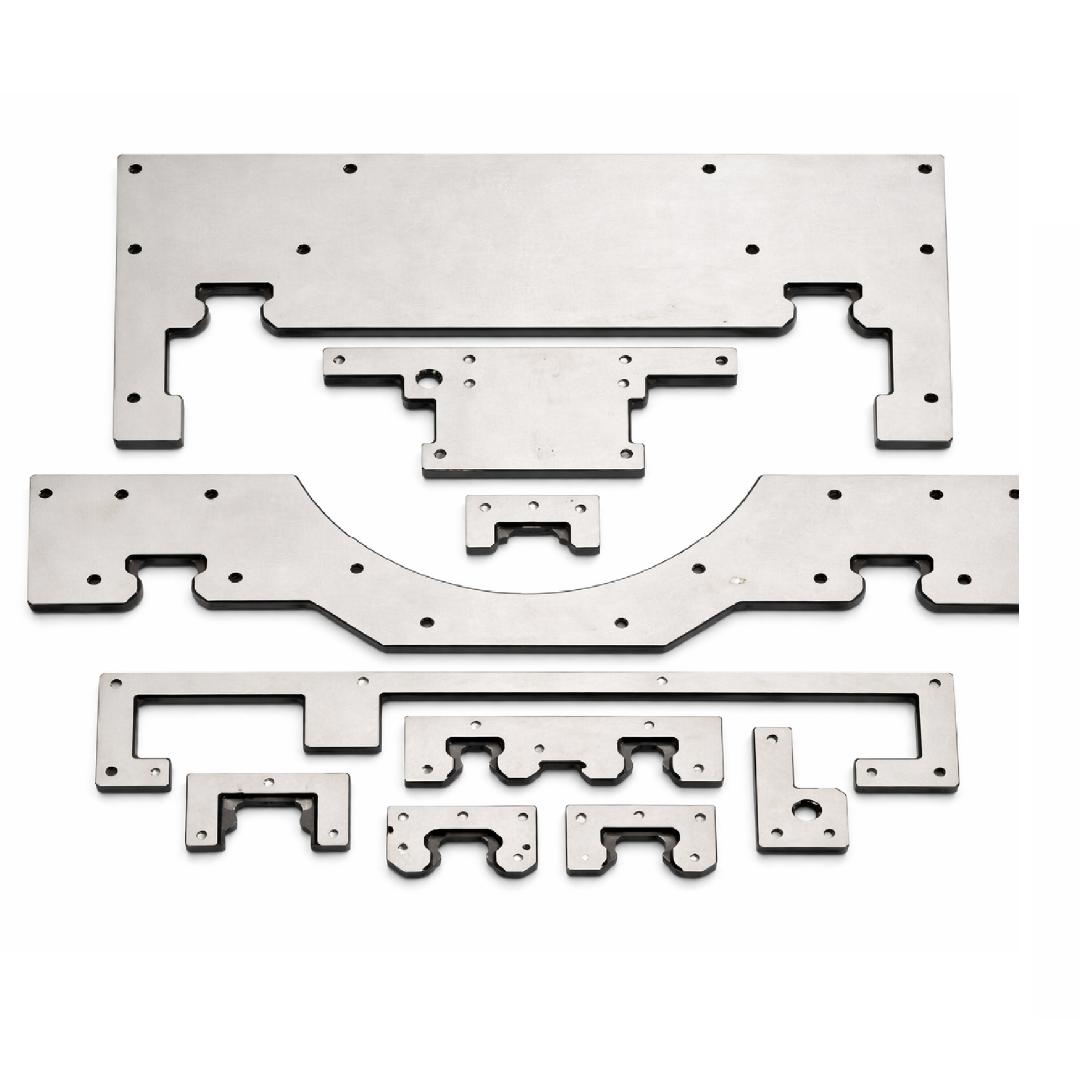

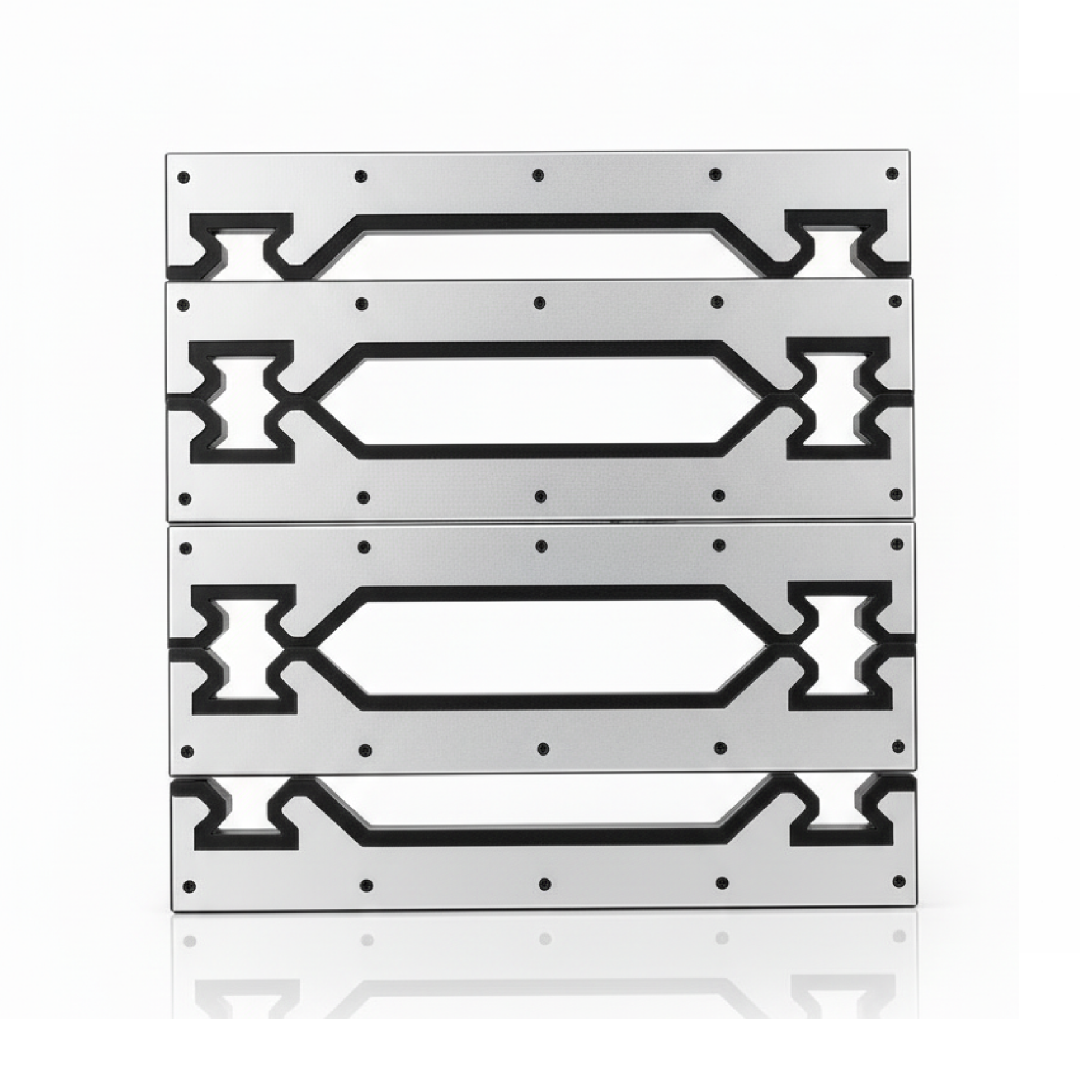

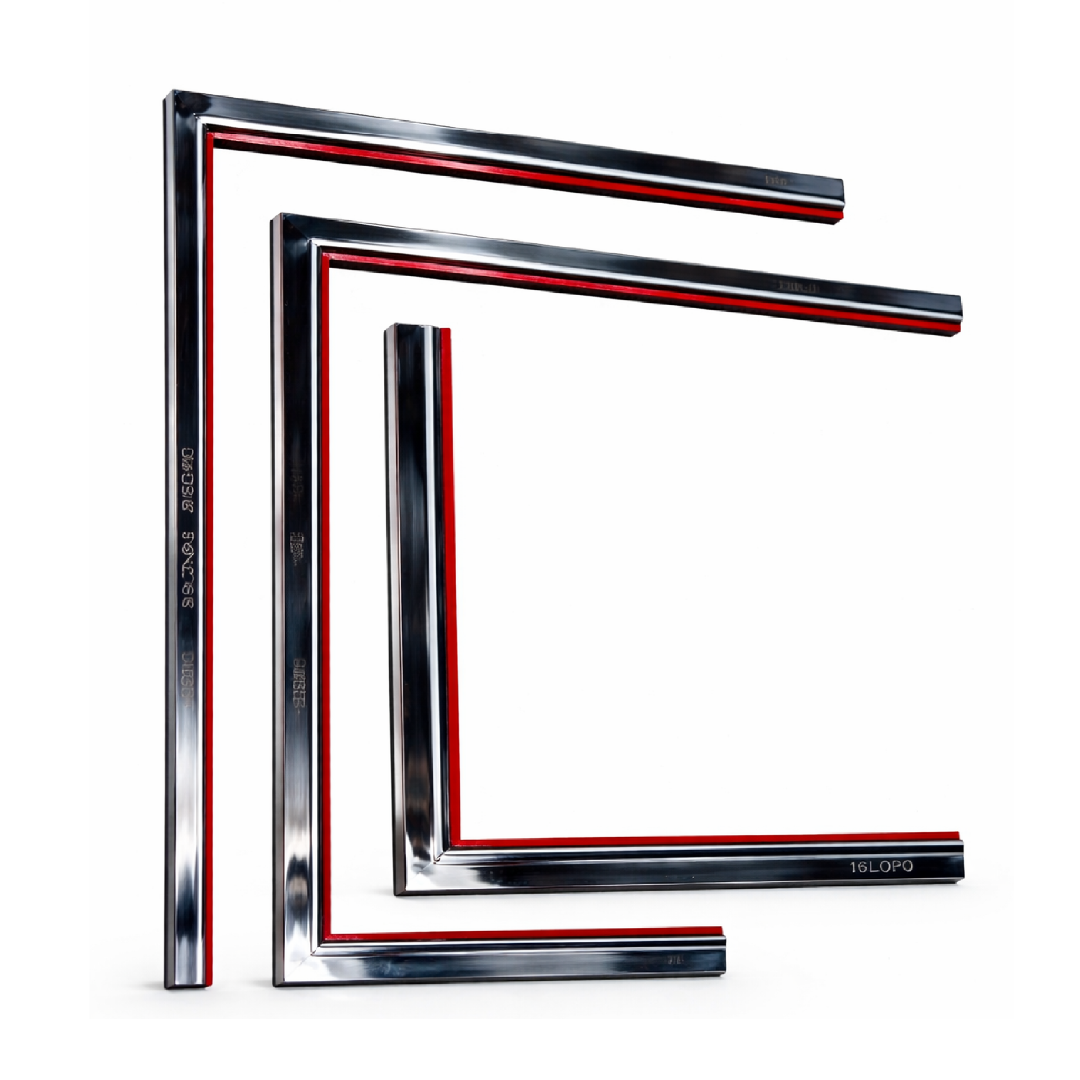

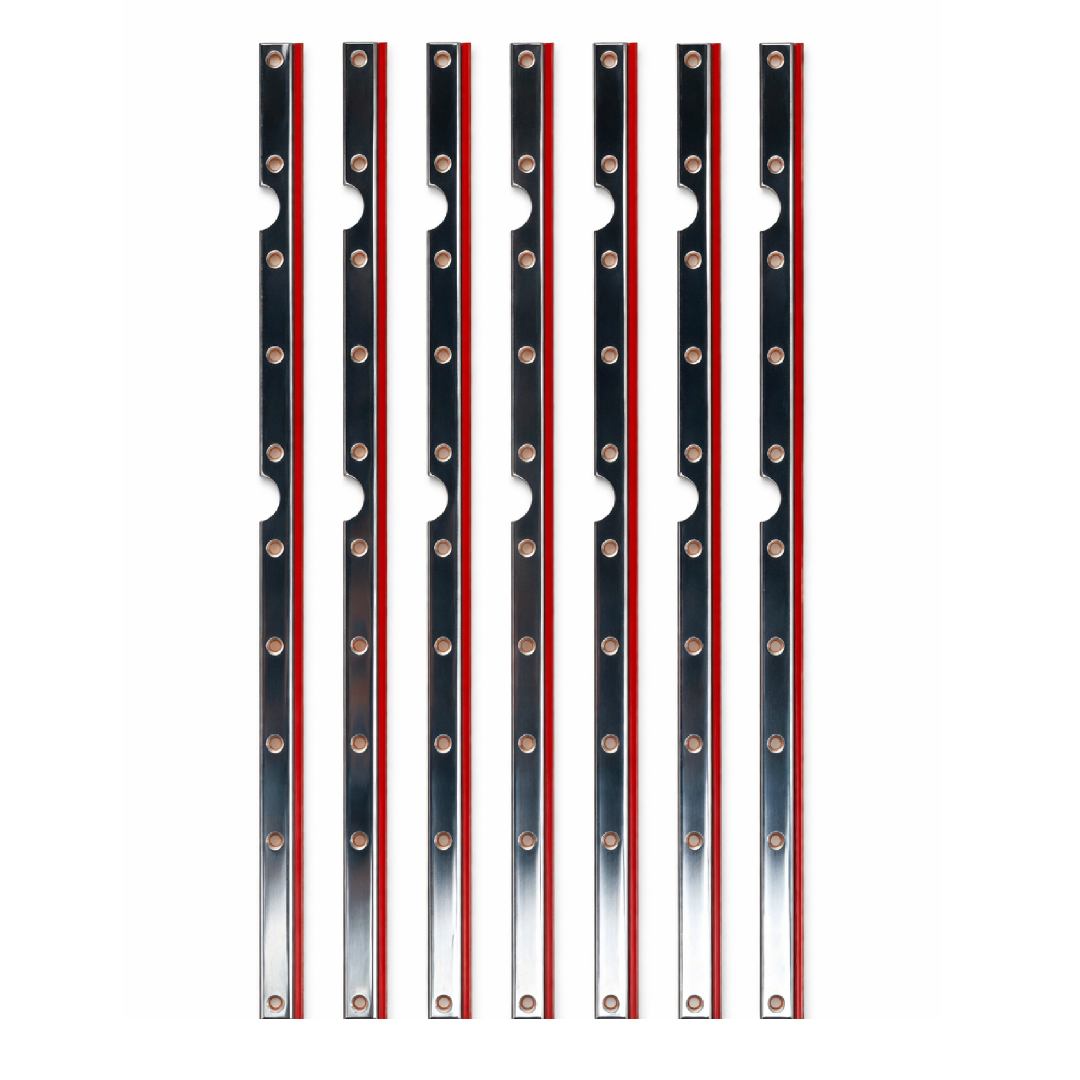

PictureS OF FORMED WIPERS AND MOULDED WIPERS.

35+ Years Experience

OEM Focused Manufacturing

Custom Engineering

Made in India

Product Range

CONSTRUCTION VARIANTS

WAY WIPERS SS

Stainless steel reinforced profiles for robust wiping and long service life on machine guideways.

4.6 mm stem profiles

MS SERIES

GENERAL WIPERS

General purpose profiles in MS1 to MS6 geometries with multiple A/B/C/D size combinations.

MS1-MS6 standard profiles

TELESCOPIC

TELESCOPIC WIPERS

Compact telescopic profiles including EN1, EN2, ENC and SS variants for guided sliding protection.

EN1 EN2 ENC SS

COVERED

TELESCOPIC WIPERS WITH COVERING

Covered telescopic profiles with integrated wiping lips for enhanced sealing against chips and coolant.

3.5 mm lip variants

Technical Details

Profile Families

WAY WIPERS SS

SS profile family shown with three height combinations: 21/25 mm, 14/18 mm, and 10/14 mm.
Common section dimensions include 4.6 mm stem width, 8 mm lip width, ~8.5 mm base, and 1 mm lip thickness.
Suitable where higher structural support and wear resistance are required.
Used on CNC guideways, telescopic covers, and retrofit way protection assemblies.

GENERAL WIPERS (MS1-MS6)

MS1: A 14/18/25, B 6.5, C -, D 6.5/5, Length 500.
MS2: A 18/25, B 4.5, C 15/22, D 7.5, Length 560.
MS3: A 14/18/25, B 5, C 11/18/22, D 7, Length 500.
MS4: A 25/34, B 3, C 15/20, D 12, Length 800.
MS5: A 25/30, B 3, C 15.5/20.5, D 15, Length 800.
MS6: A 25/34, B 2, C 17/19, D -, Length 300/600.

TELESCOPIC WIPERS & TELESCOPIC WIPERS WITH COVERING

Telescopic wipers are available as EN1, EN2, ENC and SS profile types for compact moving interfaces.
Covered telescopic options include section variants shown with key dimensions such as 19/12/6.1/3.2, 8/6/3.5, and 12/6/3.5 configurations.
Designed for improved sealing where guideways are exposed to coolant and fine chips.
Suitable for CNC telescopic covers and custom machine guard integrations.

Materials

MATERIAL OPTIONS

Wiper materials are selected based on guideway type, operating speed, and environmental exposure:

Polyurethane (PU)
Nitrile rubber (NBR)
Special wear-resistant elastomers
Metal-backed wiper profiles

Customisation

CUSTOMISATION CAPABILITIES AT SIGNAGE

All wiper systems are supplied to specification. We support:

Custom profiles and dimensions

Compatibility with linear guides and box ways

Metal housings and mounting plates

OEM branding and part identification

Prototype development and series production.

How We Build It

MANUFACTURING CAPABILITIES

Precision moulding and forming processes

Controlled profile shaping and finishing

Consistent lip geometry and contact pressure

Batch repeatability for long-term OEM supply

Standards

QUALITY & INSPECTION

Dimensional inspection for fit and profile accuracy
Material consistency checks
In-process quality monitoring
Export-grade packing for international shipments

Where It's Used

TYPICAL APPLICATIONS

CNC machine tools

Machining centres

Linear motion systems

Automation equipment

Heavy engineering machinery

Document Support

Capability Sheet – Way Wipers & Wiper Systems

Product Overview
Types of Wipers Manufactured
Material Capabilities
Design & Customisation
Manufacturing Capabilities
Quality & Inspection
Typical Applications
Supply Capability
Information Required for Enquiry
Contact & Technical Support

CONTACT & TECHNICAL SUPPORT

Share your drawings or application details. Our technical team will support you with the most suitable way wiper or wiper system for your machine design.
